Sonic Visualiser

Sonic Visualiser is an application for viewing and analysing the contents of music audio files. This is a brief reference manual explaining the concepts used in Sonic Visualiser and how to use it. This manual describes Sonic Visualiser version 5.0.1.

This document is Copyright 2006-2024 Chris Cannam and Queen Mary, University of London. You may modify and redistribute it under the terms of the Creative Commons Attribution-ShareAlike 2.5 License. See http://creativecommons.org/licenses/by-sa/2.5/ for details.

Please report errors and omissions using the Sonic Visualiser bug tracker.

1  Panes and Layers

1.1  What are Panes and Layers?

Sonic Visualiser's user interface is structured around panes and layers. A pane is a horizontally scrollable area of window like a drawing canvas; a layer is one of a set of things that can be shown on a pane, such as a waveform, a line graph of measurements, or a subdivision of the horizontal axis into differently coloured segments.

You can stack any number of panes above one another vertically: a scrollbar will appear if you have too many to fit in the window. The horizontal axis of each pane corresponds to time in audio sample frames, and all of the stacked panes will be aligned to the same sample frame at their centre points.

Each pane can then display any number of layers, which are conceptually stacked on top of one another like layers in a graphics application. So for example, you may have a spectrogram layer "at the back", with line data, onset positions and notes displayed in separate layers "in front", i.e. drawn over the top of it. There are several different kinds of layer, which differ in the types of data they can represent: instants, curves (time-value plots), and so on.


A pane with four layers: waveform in black, time ruler in grey, time values in purple and time instants in blue.

Layers that are stacked on the same pane will always share the same magnification (or zoom) and alignment on the x (time) axis. However, they do not have to have identical scales on the y axis — although Sonic Visualiser will attempt to align them vertically by default if their scale units match.

One pane is always the "active" pane, and this one is marked with a black vertical bar to its left, like the one by this paragraph. The front layer on that pane is the active layer. Any menu or keyboard function in Sonic Visualiser that works on a single layer will always operate on the active layer.

Many of the annotation layer types are interactively editable on the pane itself. The exceptions are those layers corresponding directly to audio data (such as waveform and spectrogram layers), and those showing dense information such as grids.

1.2  Adding Panes and Layers

Sonic Visualiser starts with a single visible pane. When you import an audio file, it adds time ruler and waveform layers to that pane, displaying the new audio file.

There are then three menus dedicated to adding new panes and layers to the display, with various kinds of data in them:

You can also add a new layer by importing an existing set of annotation data from a file.

1.3  Display Properties

Each layer, whether editable or not, has a set of adjustable display properties. These are shown in a tabbed box to the right of the pane, with one tab for each layer in the pane. Clicking on the numbered tab brings the corresponding layer to the front of the pane and makes it the active layer.

To save space, not all of the names of the properties are shown; you can hold the mouse pointer over a control to see the name of its property in a tooltip or the status line at the bottom of the main window. And if you right-click on a control, a menu will pop up showing the name and current value of the property and offering some editing options.

The available properties for the each type of layer are discussed in the sections about the individual layer types, later in this reference. There are also audio playback controls at the bottom of the boxes for many layer types.

There is also a tab corresponding to the pane itself, which can be used to control the way the pane scrolls during playback and whether it moves and zooms in sync with other panes.

The Global Scroll and Global Zoom settings (both on by default) make the pane follow any horizontal scrolling and zooming that happens in other panes that also have these settings on, so that when you scroll or zoom in one of them, they all scroll or zoom.

The Follow Playback control allows you to choose whether the pane will track playback using a playback cursor, paging when it reaches the edge of the pane (Page); or whether it will scroll along with the playback (Scroll); or neither.

1.4  Zoom and Scrolling

There are various ways to control the zoom (i.e. level of magnification) and scrolling (i.e. left/right or up/down positioning) of the current pane.

1.4.1  Zoom

To adjust the zoom level, you can:

Generally when you change the zoom level in any one pane, all of the other panes zoom to match. But you can also uncheck the "Global Zoom" option in a pane's display properties to switch it to zooming independently from the rest.

1.4.2  Zooming to an Area

If some area of a layer is of particular interest, such as a time-frequency area of a spectrogram or a specific period of time in a waveform or annotation layer, you can also zoom into that area directly so that it fills the whole pane in both axes.

To do this, ensure the default Navigate tool is selected (see Tools below), and hold down the Shift key while clicking and dragging out a rectangular area of a pane (which will be shown surrounded by a blue box on the pane). When you release the mouse button, the pane will be zoomed to that area.

1.4.3  Scrolling

To scroll along the time axis within the current file, you can:

All of the above scrolling methods move the playback position (keeping it in the centre of the pane) as well as scrolling the pane. But you can also scroll only the current pane while leaving the playback position unchanged, by holding the Alt key while using the left and right cursor keys. This is referred to in the View menu as "peek"ing left or right.

Finally, you can click and drag in the small overview waveform shown at the bottom of the main window, to scroll all of the panes without moving the playback position.

As with zooming, you can also uncheck the "Global Scroll" option in a pane's display properties to switch that pane so that it no longer follows the rest when you scroll one of them.

2  Sessions and Undo

A Sonic Visualiser "session" is a record of almost everything you see in front of you in the Sonic Visualiser window: the current layout of panes, the set of layers on each one, all of the data in each of the editable layers, a reference to the source data (for example the audio file) for non-editable layers like waveforms, the display properties for each layer, and some information about where each layer came from (for example, whether it was generated by a plugin and if so, which plugin and how it was configured.)

You can save the entire session to a .sv session file using File -> Save Session As... Reloading this file should restore your session state, provided that the original audio file can also be found. (If you are passing session files to other Sonic Visualiser users, be sure to make sure they have the audio data as well, as this is never stored in the session file.)

Sonic Visualiser provides full multi-level Undo and Redo. Almost all actions that change the session you see in front of you — with the exception of scrolling and zooming — can be undone. This includes adding and removing layers and panes and changing the display properties for a layer, as well as more conventional edits.

3  Tools

Sonic Visualiser has six "tools", which control the way mouse actions interact with the panes. These can be activated using the tool icons on the toolbar:

4  Selection

With the select tool active, click and drag within any pane to select a time extent.

The selection boundaries will snap to the resolution or features present on the active layer. For example, if you drag a selection on a spectrogram layer, the selection's boundaries will be aligned with the spectrogram's FFT window hops; if you drag a selection on a time-instants layer, its boundaries will snap to instants present on the layer; if you drag a selection on a waveform layer, its boundaries will simply snap to audio sample frames.

Pressing Shift as you start dragging a selection will defeat this snap effect, forcing the selection to snap to the nearest audio sample to each pixel boundary.

You can select additional areas as well, by holding Ctrl as you start selecting the second and subsequent areas, which adds the new areas to the existing selection instead of extending it or starting a new one.

You can also click-drag the left and right edges of a selection to change its extents after it has been made.

A selection within Sonic Visualiser conceptually consists of one or more time extents. When you select an extent in a layer, you are selecting a period of time across all layers; you are not selecting the visible items that happen to fall within that area in that one layer.

This has several consequences:

An advantage of this is that it is very easy to select all the items in one layer that fall between certain items in another layer — make the second layer active, make a selection (which will snap to the item positions on that layer), then make the first layer active again.

5  Editing

Most of Sonic Visualiser's annotation layer types are interactively editable. Layers corresponding directly to audio data (such as waveform and spectrogram layers) are not editable. Sonic Visualiser is not an audio editor.

To move an individual item in a layer, make sure the edit tool is active and then click on and drag the item. If the item is relatively wide on the screen, you may have to click and drag its left hand edge for the drag to take effect.

When dragging an item, there is a certain amount of "resistance" when you first move the mouse before the item begins to move (to help avoid accidental edits). You can override this by holding down the Shift key when you start dragging, if you want to make a small correction.

You can also edit the details of an item directly, by double-clicking on it with either the navigate or edit tool selected. (The advantage of using the navigate tool is that it removes the risk of accidentally editing the point while double-clicking on it.)

To move a set of items at once, select the area around them, then switch to the edit tool and drag the selected area.

To delete one or more items click on them with the erase tool selected, or select the area around them and use Edit → Delete Selected Items.

5.1  Cut and Paste

Sonic Visualiser allows you to cut and paste between layers of different types, preserving as much information as can be reconciled with the layer types.

To cut and paste between two layers, select the items in the source layer, use Edit -> Cut, select the target layer and Edit -> Paste. The items will be pasted at the same location in time as they were found in the source layer.

If the target layer is of a type that represents less information than the source — for example if you are pasting to a time instant layer from a time/value curve — then the relevant information (in this case time positions) will be retained, and the rest discarded.

If the target layer represents more information than the source, you will be offered various options for how to make up the values that are not present in the pasted items (as shown to the right).

If no suitable target layer is selected at all (for example, if the layer that is active when you ask to paste is not of an editable type), then a new layer of the most appropriate type will be created automatically and the values will be pasted into it.

5.2  The Data Editor

You can also view and edit data for a layer directly in the data editor window. If the current layer is an editable one, you can call up this window through the Edit Layer Data option on the Layer menu.

You can edit any of the values in this layer simply by double-clicking on a value and typing a new one. If you want to edit one of the real-time values in the first column, enter the new value in seconds. Undo applies to any edits made in this window.

By default, this window will scroll to keep time with playback. You can toggle this behaviour using the Track Playback button in the toolbar.

Although you can select items in the data editor window and delete them as well as inserting new ones, there is no connection between the selection in this window and any selection that is in place in the main window.

6  The Layers in Detail

6.1  Waveform

The waveform layer shows audio data in a traditional waveform peak display.


A waveform layer.

Each pixel on the horizontal axis shows the peak and mean positive and negative values found in samples falling within that pixel's range at the current zoom level. The zoom level can be increased or decreased using the mouse wheel or the Up and Down cursor keys.

The Y axis scale can be adjusted using the Scale display properties:

The Scale properties also provide a display gain control; a "Normalize Visible Area" switch which will adjust the display gain continuously so as to ensure full scale displacement for the largest value in the visible section of the waveform; and an "Interpolate" switch which is described in the next section.

The way the waveform layer handles multiple channels can be adjusted using the Channels display property:

6.1.1  Waveform Interpolation

If you zoom close enough into a waveform layer, Sonic Visualiser will switch from showing the peak values for each pixel, to showing individual samples as points connected by lines:

The lines in this view represent the result of interpolating between the samples in such a way that the resulting signal is bandlimited in frequency to twice the sampling rate. Although there are infinitely many ways to draw a path through all the points, there is only one way to do so with a signal that doesn't contain any components of higher frequencies, and Sonic Visualiser aims to represent that. (A digital-to-analogue audio converter also approximates the same behaviour.)

For example, if you load a file that contains all zeros except for a single sample of value 1, then zoom in very closely, you will see a shape like that shown on the right. This particular curve, known as the sinc function, is the shape of a signal that passes through these points "smoothly" enough not to contain any frequencies above twice the sampling rate.

Note that this interpolation only happens when the layer is zoomed in far enough to show the individual sample points. The rest of the time, the displayed peak heights are based on sample values alone. A signal may have peaks in between samples that exceed any of the individual sample values, but such extremes will not be visible until you zoom in.

To disable and re-enable interpolation, toggle the "Interpolate" control in the waveform layer properties. Disabling it will simply remove the interpolating line and leave the points unconnected. This has no effect unless the layer is zoomed in far enough to see the individual sample points.

6.2  Time Ruler

The time ruler layer simply displays a series of labelled time divisions.


A time ruler layer. The centre line is not part of the layer, but is built in to the pane.

Each new pane has a time ruler layer in it by default, although you can remove or hide it. The time ruler layer is not editable.

6.3  Spectrogram

The spectrogram layer shows audio data in the frequency domain, with the Y axis corresponding to frequency and the power (or phase) of each frequency within a given time frame shown by the brightness or colour of the pixels corresponding to that frequency.

There are three types of spectrogram layer available in the Sonic Visualiser menus: "plain", Melodic Range, and Peak Frequency. These differ only in the initial properties the layer is set up with. You can always turn any kind of spectrogram into any other kind by adjusting its properties after it has been created.


A spectrogram layer.

The colour scheme used for the spectrogram can be adjusted using the Colour properties (Colour, Threshold, and Colour Rotation). The Colour option allows you to select different colour maps; while most of these are smooth gradients from one colour to another, there are also two colour maps (Banded and Highlight) that employ sudden transitions of colour. These can be useful with the Colour Rotation control to isolate areas with similar levels.

The Colour properties for the spectrogram also include toggles for "Opaque" and "Smooth" display. Both are enabled by default. Switching off the "Opaque" control dims the spectrogram and gives it some translucency, so that whatever is beneath can be seen through it. This can be useful if what is beneath is another spectrogram or other time-frequency plot, although care must be taken that their scales match. The "Smooth" control toggles whether smoothing interpolation is used when drawing the spectrogram; if disabled, the original bins are shown as independent blocks.

The type of values displayed, and the way the colour scale for the spectrogram is calculated can be adjusted using the Scale display properties:

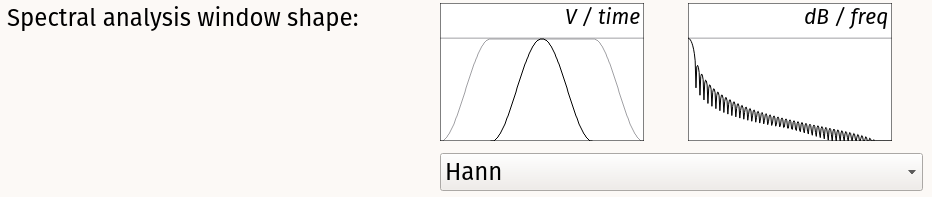

The spectrogram itself is obtained from the results of a series of fast Fourier transforms of windowed sections of the original audio. The parameters of these transforms can be adjusted using the Window display properties:

The scale used for the Y axis of the spectrogram can be adjusted using the Bins properties.

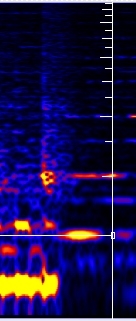

If you switch to the measure tool and move the mouse over the spectrogram, it will show the "harmonic cursor" (see right). This is a vertical line with tick marks at the frequencies of the second harmonic, third harmonic and so on of the frequency that the mouse is currently pointing at. These frequencies are simple multiples of the fundamental, so they will be equally spaced if the frequency scale is linear, or will get closer together as they go up if the frequency scale is logarithmic. See Measurements for other uses of the Measure tool.

When selecting an area of time in a spectrogram layer, the selection will snap to the spectrogram's processing time frames. Hold the Shift key at the start of selection to defeat this.

6.3.1  Initial Spectrogram Properties

The Sonic Visualiser pane and layer menus contain options to add three kinds of spectrogram. These are all the same type of layer, but starting with different display properties.

Spectrogram

The plain spectrogram option creates a spectrogram that displays the full frequency range up to half of the audio file's sampling rate, with the vertical Frequency Scale set Linear, with Colour Scale set to dBV, and using a fairly gentle green colour scheme by default, although this can be changed in the application preferences.

This is a general overview of the content of the file, in which background noise and overall equalisation trends may be fairly evident but individual musical features are not usually easy to make out.

Melodic Range Spectrogram

The melodic range spectrogram aims to make it easier to discern individual musically meaningful features.

It shows by default a frequency range from approx 40Hz to 1.5KHz, covering around 5.5 octaves that most usually contain melodic content. The FFT windows are fairly large for better frequency resolution, and heavily overlapped. The vertical Frequency Scale is logarithmic in frequency, and therefore linear in perceived musical pitch. The Colour Scale is Linear, making noise and lower-level content invisible but making it easier to pick out salient musical events, and a crisp colour scheme is used by default, although this can be changed in the application preferences.

Peak Frequency Spectrogram

The peak frequency spectrogram is similar to the melodic range spectrogram, but it aims to make it possible to pick out precise frequency content in the material, within certain limitations.

Its Bin Display is set to Frequencies, so that it displays only those bins that are stronger then their neighbouring frequency bins, and for each bin it calculates an estimated frequency using phase unwrapping on the assumption that a stable frequency is present. This frequency is then displayed using a short horizontal line, rather than colouring the whole bin as a block. In good conditions this may produce a fairly accurate estimate of the actual frequency of an individual tone.

6.4  Spectrum

The spectrum layer shows a frequency analysis of the audio at a given point in time, like a vertical slice through a spectrogram layer.


A spectrum layer.

In contrast to almost all of the other layer types, the x axis of a spectrum layer does not measure time. Instead, the spectrum's x axis corresponds to frequency, with lower frequencies to the left and higher to the right. The spectrum animates appropriately to match the movement of time during playback and navigation, instead of scrolling. (In this respect it is closely related to the slice layer, which can display a similar slice through a colour 3D plot.)

The y axis of a spectrum plot shows the value of each frequency bin, corresponding to the colour scale of the spectrogram.

You can adjust the window size, overlap, and oversampling level (corresponding to zero-padding the time-domain signal for a longer FFT) using the Window properties, just as in the spectrogram; and you can select the y axis scale (linear or dB), gain and normalisation using the Scale properties.

The type of plot used to show the spectrum can be adjusted using the Plot Type property:

If the Show Peak Frequencies property is set, a vertical line will be drawn through the estimated frequency of each spectral peak. If you move the mouse pointer over one of these lines, the estimated frequency will be shown. The frequency is calculated based on phase information on the assumption that a stable frequency is present; this is the same mechanism as used for the Peak Frequency Spectrogram.

The horizontal extent of each bin depends on the Plot X Scale property, which selects the mapping between frequency and x coordinate for the plot.

If you switch to the measure tool and move the mouse over the spectrum, it will show a "harmonic cursor" like that in the spectrogram. See Measurements for other uses of the Measure tool.

6.5  Time Instants

The time instants layer shows an editable sequence of points in time (instants), with each point displayed as a vertical bar across the full height of the layer. Each instant may have a label, which will be displayed near the top of the instant.


A time instants layer.

Instants can be added by clicking with the draw tool , and edited by dragging with the edit tool . You can also double-click on an instant with the edit or navigate tool to open an edit dialog in which you can change its label and finely adjust its timing.

When selecting an area of time in a time instants layer, the selection will snap to the nearest instants on the layer (if any). Hold the Shift key at the start of selection to defeat this.

When a time instants layer is active, the fast-forward and rewind buttons can be used to jump the playback position to the nearest instant in either direction.

The Plot Type display property can be used to select between Instants display, in which each instant is shown with a single vertical bar, and Segmentation display, in which the spaces between instants are coloured in alternating shades.

A time instants layer has a fundamental resolution, as a number of audio sample frames. Instants may only occur at multiples of this resolution, and are displayed using bars of a width corresponding to this resolution. The default resolution is 1 audio sample frame and this cannot currently be changed for any given layer, although layers generated by certain plugin transformations may have different resolutions.

6.6  Time Values

The time values layer shows an editable sequence of points in time, where each point has a value that determines its position on the Y axis. Each point may also have a label.

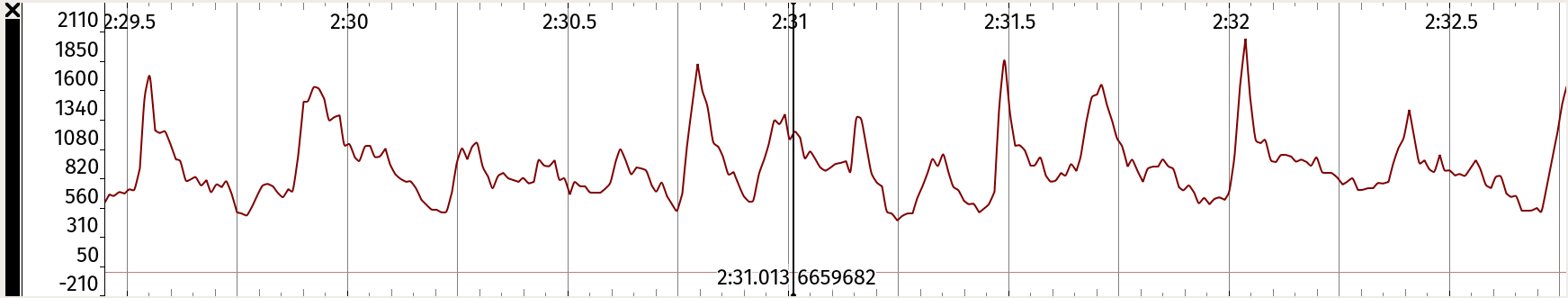

A time values layer, with curve plot type.

Points can be added by clicking with the draw tool , and edited by dragging with the edit tool . You can also double-click on a point with the edit or navigate tool to open an edit dialog in which you can change its label and finely adjust its timing and value.

When selecting an area of time in a time values layer, the selection will snap to the nearest instants on the layer (if any). Hold the Shift key at the start of selection to defeat this.

When a time values layer is active, the fast-forward and rewind buttons can be used to jump the playback position to the nearest point in either direction.

The Plot Type display property can be used to adjust the display of points:

A time values layer may have a unit for the scale on the Y axis. If two layers with the same unit appear on the same pane, they will by default have vertical scales aligned with each other. This behaviour can be adjusted using the Vertical Scale display property.

If Vertical Scale is set to Linear or Log Scale, the scale will cover the range of values (or logs of values) present in the layer; if set to "+/-1", it will cover the range from -1 to +1 and points with values outside that range will be omitted.

If the Vertical Scale for a layer is set to anything other than Auto-Align, then any other layers in the same pane that have the same unit and that have Vertical Scale set to Auto-Align will align themselves to match it.

You can change the scale unit for a layer by selecting from, or editing the value in, the Scale Units property combo-box.

A time values layer has a fundamental resolution, as a number of audio sample frames. Points may only occur at times that are multiples of this resolution, and they may be displayed using boxes of a width corresponding to this resolution. The default resolution is 1 audio sample frame and this cannot currently be changed for any given layer, although layers generated by certain plugin transformations may have different resolutions.

6.7  Notes

The notes layer shows an editable sequence of notes, where each note has a start time, a duration, and a value that determines its position on the Y axis. Each note may also have a label.


A note layer.

Notes can be added by clicking and dragging with the draw tool , and edited by dragging with the edit tool . You can also double-click on a note with the edit or navigate tool to open an edit dialog in which you can change its label and finely adjust its timing and value.

When selecting an area of time in a notes layer, the selection will snap to the start times of the nearest notes on the layer (if any). Hold the Shift key at the start of selection to defeat this.

A notes layer may have a unit for the scale on the Y axis. If two layers with the same unit appear on the same pane, they will by default have vertical scales aligned with each other. This behaviour can be adjusted using the Vertical Scale display property.

If Vertical Scale is set to Linear or Log Scale, the scale will cover the range of values (or logs of values) present in the layer; if set to "MIDI Note Range", it will cover the range from MIDI notes 0 to 127 and values outside that range will be omitted.

If the Vertical Scale for a layer is set to anything other than Auto-Align, then any other layers in the same pane that have the same unit and that have Vertical Scale set to Auto-Align will align themselves to match it.

You can change the scale unit for a layer by selecting from, or editing the value in, the Pitch Units property combo-box. However, if the scale unit is anything other than "Hz", the layer will assume that the values correspond to MIDI pitch and will convert them to Hz when calculating display and alignment.

A notes layer has a fundamental resolution, as a number of audio sample frames. Notes may only occur at times that are multiples of this resolution. The default resolution is 1 audio sample frame and this cannot currently be changed for any given layer, although layers generated by certain plugin transformations may have different resolutions.

6.8  Regions

The regions layer shows an editable sequence of regions spanning durations in time. Each region has a value, which by default determines its position on the Y axis, and a duration. A region may also have a label. A regions layer is used (for example) to display the result features returned by a plugin transform that associates a duration with each of its values.

Regions can be added by clicking with the draw tool , and moved by dragging with the edit tool . You can also double-click on a region with the edit or navigate tool to open an edit dialog. (You may need to click near the left edge of the region for an edit to take effect.)

When selecting a region of time in a region layer, the selection will snap to the nearest region start. Hold the Shift key at the start of selection to defeat this.

6.9  Boxes

The boxes layer shows a set of rectangular areas. A box encloses a duration in time for a given y-axis range, and you can also add a text label to each box.

The boxes layer is intended to be superimposed on another layer that has a suitable vertical scale — such as a spectrogram or time-values layer. The image to the right shows a boxes layer superimposed on a spectrogram layer.

Provided that the vertical scale setting of the boxes layer is set to Auto-Align, and that it has the correct scale unit to match the layer underneath (such as Hz for a spectrogram), the boxes should correctly indicate the y-axis values for the layer underneath. These are the default settings when you first add a boxes layer on top of an existing layer with a suitable vertical scale.

Boxes can be added by dragging with the draw tool , and moved by dragging with the edit tool . You can also double-click on a box with the edit or navigate tool to open an edit dialog and to label the box.

Note that the boxes layer is not the same as measurement rectangles, which can be added to any layer using the Measure tool. Measurements rectangles are really intended for interactive exploration of a space, while the boxes layer is intended for persistent annotations that may be saved, exported, or edited later in the session.

6.10  Text

The text layer shows text annotation labels. Each label is fixed to a particular position in time, and appears at a particular height on the layer. The text layer is intended for informal or descriptive annotations that are not attached to other sorts of features (as the other editable layer types allow their points to have labels as well).

Labels can be added by clicking with the draw tool , and moved by dragging with the edit tool . You can also double-click on a label with the edit or navigate tool to open an edit dialog. (You may need to click at the top-left corner of the text label for an edit to take effect.)

When selecting a region of time in a text layer, the selection will snap to the nearest label on the layer (if any). Hold the Shift key at the start of selection to defeat this.

6.11  Images

The images layer shows images with optional labels. These images are drawn from image files at a disk or network location; only the image location is stored in the session, not the whole image, so you should be careful to make sure images are stored at an accessible location or transmitted with your session files as appropriate.

Images in a layer are fixed to a particular position in time under your control, but their Y coordinate on the pane is based entirely on their height and cannot be changed.

Images can be added by clicking with the draw tool , and moved by dragging with the edit tool . You can also double-click on an image with the edit or navigate tool to open an edit dialog from which you can set the label or change the image being displayed.

6.12  Colour 3D Plot

The colour 3D plot layer displays a three-dimensional data set in a grid.


A colour 3D plot layer.

It is used for data sets which have a discrete time axis, a set of bins at each time position, and a value in each bin. (In this respect it resembles the spectrogram, except that the spectrogram also knows about frequencies, window sizes and so on.) The grid x and y coordinates correspond to the time and bin respectively, and each grid square is coloured according to the value in the corresponding bin.

You can change the colour map used for the value scale using the Colour property; adjust whether the colour is mapped to a linear or logarithmic scale using the Scale property; and also choose to normalise the individual columns of the plot. See the Spectrogram layer for details of the different normalisation options.

The colour 3D plot layer is not editable. For this reason, you cannot add an empty colour 3D plot layer using the Layer menu, because you would then be unable to do anything with it. These layers only appear when a transform whose output is appropriate for grid display is applied, or when importing certain types of annotation data.

6.12.1  Slices

A slice layer shows an instantaneous graph of the values present along the Y axis of a colour 3D plot layer, at the moment corresponding to the current centre frame. A slice is to a colour 3D plot as a spectrum is to a spectrogram.

If you have a colour 3D plot layer present in Sonic Visualiser, you can add a slice layer for it using the Add Slice of Layer option in the Layer menu.

7  Transforms and Plugins

7.1  The Transform Menu

The Transform menu contains all of the available means of generating new layers with new data in them, using various kinds of binary plugin. If the Transform menu is empty, then you need to get some plugins!

Several types of plugin-based transform are available.

7.2  Analysis Plugins

Sonic Visualiser can generate layers using audio analysis and feature extraction plugins, which may be provided by third party developers or institutions. The native plugin format is called Vamp (see http://www.vamp-plugins.org). Vamp plugins take audio inputs and can generate outputs suitable for display in any of Sonic Visualiser's standard types of layer.

If you have any Vamp plugins installed, Sonic Visualiser will show them in the Analysis section of the Transform menu. This section contains three menus, sorting the available plugin outputs according to plugin category, plugin name, or the maker of the plugin. Category information is obtained from an optional .cat file associated with each plugin library; Vamp plugins that lack categories will appear in an Unclassified section. (Advanced users may set up their own category hierarchy by making and installing their own .cat files: the file format is a simple textual one easily made by copy-paste and editing existing files.)

Selecting an analysis plugin output will generate a new layer in the current pane, containing the output produced by that plugin from the main audio waveform. If the plugin has any configurable parameters, you will be shown a configuration dialog before the plugin is run. If you have more than one audio file or generated audio waveform present in Sonic Visualiser, this dialog will also allow you to select which of them will be used as the input to the plugin.

The processing step and block sizes for Vamp plugins are set by negotiation with the plugin, with a default of 1024 audio sample frames in cases where the plugin does not have a preference. You can change these sizes, and also adjust the behaviour of plugins that operate on single-channel audio when using a multi-channel audio file, from the Advanced options section of the plugin's configuration dialog.

See the Vamp plugin download page to find out about some of the available Vamp plugins and how to install them. See the Vamp API documentation for details of the plugin format and how to develop new Vamp plugins.

7.3  Effects Plugins

Sonic Visualiser also supports effects plugins in the LADSPA and DSSI formats. These are originally Linux plugin formats, but are portable to other platforms as well, and many LADSPA effects in particular are available for most popular platforms.

Effects plugins can be used to generate new layers in more than one way, and so if you have any installed, you will see up to three corresponding sections in the Transform menu.

7.3.1  Effects

The Effects section of the Transform menu lists plugins that take audio as input and convert it to audio output. This is the most usual mode of operation for an effects plugin.

Selecting an effects plugin will generate a new layer in the current pane, containing the new audio waveform produced by that plugin. If the plugin has any configurable parameters, you will be shown a configuration dialog before the plugin is run. If you have more than one audio file or generated audio waveform present in Sonic Visualiser, this dialog will also allow you to select which of them will be used as the input to the plugin.

The processing block size for effects plugins defaults to 1024 audio sample frames. You can change this, and also adjust the behaviour of plugins that operate on single-channel audio when using a multi-channel audio file, from the Advanced options section of the plugin's configuration dialog.

7.3.2  Effects Data

Sonic Visualiser can also generate layers from "control-rate" outputs of effects plugins. These are referred to as Effects Data.

For example, a compressor plugin may (in addition to its audio outputs) have a control-rate output that returns the measured dB level of the audio. Sonic Visualiser can use this output to create a new time values layer, by running the compressor and effectively discarding its audio output, keeping only the control-rate output. Other plugins may have other control-rate outputs with different uses.

If you have any plugins installed that can be used in this way, they will appear in the Effects Data section of the Transform menu. In most cases, these will be the control-rate outputs of plugins whose audio outputs also appear under Effects. Some plugins intended only for measurement use may have only control-rate outputs and no audio outputs; such a plugin will only appear under Effects Data and not under Effects.

Selecting an effects plugin output from the Effects Data section will generate a new layer in the current pane, containing a time value layer showing the output produced by that plugin. If the plugin has any configurable parameters, you will be shown a configuration dialog before the plugin is run. If you have more than one audio file or generated audio waveform present in Sonic Visualiser, this dialog will also allow you to select which of them will be used as the input to the plugin.

The processing block size for effects plugins defaults to 1024 audio sample frames. You can change this, and also adjust the behaviour of plugins that operate on single-channel audio when using a multi-channel audio file, from the Advanced options section of the plugin's configuration dialog.

7.3.3  Generators

Finally, some "effects" plugins have only audio outputs, and no inputs. They generate new audio data usually based on various controlling parameters, and are referred to as Generators. Useful examples include sine-wave tone generators, white and pink noise generators and so on. These can be handy for generating comparative signals or signals to test processing algorithms for plugin development purposes.

Sonic Visualiser does not support generating new layers from what are traditionally known as instrument or synth plugins, which create audio output from "note event" inputs. It also does not support varying the control parameters of a generator plugin during operation. Finally, a current limitation is that generators can only be used to produce an additional waveform when you already have at least one audio file present — you cannot use a generator to create the only audio file in a previously empty Sonic Visualiser session.

If you have any effects plugins installed that Sonic Visualiser can use in this way, they will appear in the Generators section of the Transform menu.

Selecting a plugin output from the Generators section will generate a new layer in the current pane, containing the new audio waveform produced by that plugin. If the plugin has any configurable parameters, you will be shown a configuration dialog before the plugin is run.

The processing block size for effects plugins defaults to 1024 audio sample frames. You can change this from the Advanced options section of the plugin's configuration dialog.

7.4  Find a Transform

The "Find a Transform" function, available at the bottom of the Transform menu, calls up a transform plugin search facility. This allows you to quickly search the names and descriptions of available plugins in order to find the transform you desire, and run it if it is installed.

Just type some text into the text field at the top of the Find a Transform window, and Sonic Visualiser will search as you type. Provided an internet connection is available, the search should cover all Vamp plugins whose descriptions have been encoded using the Vamp plugin ontology, made available on the semantic web, and registered with the Vamp plugins website. The search will also cover the name and description data provided by all installed Vamp audio feature extraction plugins and LADSPA audio effects.

Transforms that were found using information provided by plugins that are already installed on the system may be run directly from this window: just double-click on a result in the list in order to run it as a transform.

Transforms that were found using semantic web descriptions of plugins that are not currently installed will be labelled "(not installed)". Depending on the semantic web data available, there may be a link provided to an information or installation page for these plugins. Sonic Visualiser does not currently provide an automatic plugin installation method.

8  Measurements

The measure tool enables you to obtain measurements in scale units (such as time in the X coordinate, or whatever the Y coordinate of the current layer represents) corresponding to certain pixel positions. To measure an area, click and drag a rectangle covering it, using the left mouse button with the measure tool selected.

An example is shown above: the dragged rectangle (in green) covers an area corresponding to 1.26 seconds in the X axis, and 32.9 Hz (9 semitones minus 28 cents, in this context) in the Y axis.

It's important to note that the measurements shown in this way are based entirely on the pixel coordinates of the measurement rectangle, not on properties of the data being displayed. For example, in the spectrogram shown above the values are not snapped to bin boundaries in either axis.

You can add any number of measurement rectangles to a layer. They are saved and restored with the session file, but they are only displayed while the measure tool is selected, and are only highlighted and labelled when the mouse pointer is inside the rectangle.

To remove a measurement rectangle, hover the mouse pointer inside it (so that it is highlighted) and press the Delete key. You can also Undo the addition of measurement rectangles, just like other editing operations.

8.1. Automatic measurement in the spectrogram

The spectrogram layer has a further extension to the use of the measure tool. With the measure tool selected, you can double-click on a feature that is visible in the spectrogram, and a measurement rectangle will be automatically drawn around that feature.

The area enclosed by the rectangle is based on the extent of similarly-coloured pixels surrounding the click position: it is entirely graphical, involving no audio analysis, and so depends on the gain and colour scheme in use in the spectrogram. The accuracy and usefulness of this capability obviously vary enormously depending on the data being displayed.

9  Audio Playback and Recording

9.1  Playback

Playback in Sonic Visualiser is controlled using the transport controls in the toolbar.

Use the    Play / Pause button, or press the Space key, to start and stop playback.

Use Rewind to Start and Fast Forward to End to jump to either end of the audio file.

Use Rewind and Fast Forward to jump to the nearest item in the appropriate direction in the current layer, if it is a time instants or time value layer, or to the nearest numbered unit in the time ruler for the pane otherwise.

You can also jump about during playback by dragging a pane using the navigate tool; by double-clicking with the navigate tool at any point in any pane; or by double-clicking on the small representation of the audio file at the bottom of Sonic Visualiser's main window.

There are four further playback controls on the toolbar. If the Play Selection toggle button is depressed and there is a selection active, then when you ask to Play, Sonic Visualiser will play only the selected extent. It is possible to have more than one separate extent selected (see Selection); playback will jump seamlessly from the end of one selected extent to the start of the next if this is the case.

If the Play Loop toggle button is depressed, then playback will jump back to the start of the audio file or selection when it reaches the end.

If the Play Solo toggle button is depressed, then only audio data from the currently active pane will be played.

If the Align File Timelines button is depressed, then playback pointers in panes other than the current one will be shown at times that correspond to the same location in their audio material as that being played in the current pane, where possible, instead of being shown at the same time in seconds as the current pane. Using Align File Timelines will automatically enable Solo. See Time Alignment.

At the bottom-right of the main window, you can see two controls for playback speed and volume level/pan. The dial control can be used to speed up or slow down playback: you can adjust playback speed from one-tenth to ten times the original speed without affecting its pitch, although the sound quality will suffer. The level/pan button shows both volume level and overall stereo balance and can be used to adjust both, in the same manner as described for the layer playback parameters below.

9.2  Sonification

Besides playback of the source audio files, Sonic Visualiser can also play some of the editable layers using tapping or note sounds. Time instants, note layers, and curve layers with Hz units can be played in this way. (Time instants and note layers have playback switched on by default, but for curves you need to enable it.)

This behaviour, as well as the levels of individual audio sources, can be adjusted in the playback section of the layer properties for each layer. An example for a Notes layer is shown to the right, where the three buttons on the left control the playback settings.

The leftmost "matrix" button shows the current playback level (or volume) and pan or balance (stereo placement) for this layer. Click this control to pop up a larger version on which you can set the level and pan by clicking and dragging the level bar. To switch playback on and off completely, toggle the "loudspeaker" button.

For some layers, you can set a particular sound sample to be used in playback. Click the rightmost "faders" button to bring up a dialog in which you can select the playback sound sample and any related parameters.

9.3  Recording

Use the Record button to start recording a new audio file from the microphone or another input. You can select the record source, from the system's available audio inputs, in Sonic Visualiser's Preferences. Press Record again, or the Space key, to stop recording.

Recorded audio files are saved in a folder beneath your home directory, and remain there after Sonic Visualiser exits: closing the session does not delete them. Go to File → Browse Recorded And Converted Audio to open the recorded audio folder in your system's file explorer window.

9.3.1  Permission to use the microphone (macOS only)

On macOS 10.14 Mojave or newer, the first time you ask to record from the built-in microphone, a system dialog box will appear asking for permission to use the microphone. You must agree to this, or else the recording will be silent. The operating system remembers your reply, and will not ask you again, even on subsequent runs of Sonic Visualiser. If you need to change this later, refer to the Privacy controls in your System Preferences.

10  Annotation by Tapping

A convenient way to add points to a time instants layer is by "tapping" during playback.

10.1  Tapping on the PC Keyboard

The simplest way to tap in new points is to play the audio and, at each moment where you want a point to be added, tap either the Enter key on the numeric keypad (if you have one), or the semicolon (";") key on the keyboard.

If a time instants layer is active, a point will be added to it at the time at which you tapped; if no time instants layer is active, a new one will be created and the point added to that.

If you want to add points to a different sort of layer, such as a time values layer, you can Cut and Paste to transfer the points to your target layer with values calculated in a variety of different ways, for example according to the distances between the points.

10.2  Tapping with MIDI

If you have a MIDI keyboard or similar MIDI input device attached, you can use it to tap instants into Sonic Visualiser — and also to record notes into a note layer. Tapping using a MIDI keyboard will normally give better timing resolution and accuracy than doing so using the PC keyboard.

To tap instants using a MIDI keyboard, play the audio and, at each moment where you want a point to be added, tap a key on the MIDI keyboard. If a time instants layer is active, a point will be added to it at the time at which you tapped; if no time instants layer is active, a new one will be created and the point added to that.

If you instead have a time values layer active, Sonic Visualiser will add new points to that layer as you tap. The points will have values based on the pitch class (0-11, where 0 is C) of the tapped MIDI note.

If you have a notes layer active, Sonic Visualiser will record MIDI notes into the layer as you play them.

Sonic Visualiser does not yet provide any way to select a MIDI device for use as the input, in the case where you have more than one. The default system device is always used.

11  Time Alignment

Sonic Visualiser provides support for automatically aligning audio file timelines to one another. This is useful when dealing with multiple audio files that represent the same source material, such as multiple performances of the same work or multiple "takes" of a recording.

For this feature to be enabled, the MATCH Vamp plugin — a Vamp plugin implementation of Simon Dixon's MATCH algorithm for audio alignment — must be installed and available. See the Vamp plugins download page for details on how to obtain and install this plugin, and the MATCH home page for more background and information about the methods used. If the plugin is found to be installed when Sonic Visualiser starts, the Align File Timelines toggle button will appear in the toolbar and the alignment feature will be enabled.

To make use of the alignment feature, import two (or more) audio files that share some common source material into separate panes and click the Align File Timelines button. Sonic Visualiser will then take some time to calculate an alignment in time between the files. The first file to be loaded will be treated as the reference, against which the other files are aligned; during alignment you will see a progress bar at the bottom left of each pane other than the reference.

Once alignment is completed, when you scroll or play through one of the audio files, Sonic Visualiser will position the other files so as to align them by source material with the one you are scrolling. For example, if one audio file contains a recording at twice the tempo of the other, you should expect the scrolling and playback pointer motion in the slower file to happen at twice the speed in terms of pixels, because the slower file takes up twice as many audio samples for the same period of the original score as the faster one. (Although counter-intuitive when described, this makes sense in use!)

You should also be able to switch from one pane to another during playback, with playback jumping from the source file to the target file at the same point relative to the underlying score or source material.

Selection extents are also subject to alignment between panes; and if you cut and paste items from one layer to another layer that has a different underlying audio file, you will be offered the option of re-aligning the times of the items you are pasting.

12  File Import and Export

12.1  Audio File Import

Sonic Visualiser can open audio files in a number of formats, although the exact set of formats depends on the platform and supporting libraries that it was compiled with. The builds that we provide on the official site support MP3, WAV, AIFF, Ogg/Vorbis, and Opus file import on all platforms, as well as MP4/AAC on both Mac and Windows, and WMA on Windows only.

To open an audio file, or any other kind of file that Sonic Visualiser supports (including session and layer files), use File → Open... or the Open button on the toolbar. You can open more than one audio file at once: if you already have one open and you want to add another, use File → Import More Audio...

12.2  Audio File Export

Sonic Visualiser can export the current audio file, or the selected extent of it, as a WAV file in IEEE floating-point format. Use File → Export Audio File to do this.

If there are multiple separate extents selected, you will be given the option to export them all spliced into a single audio file, or to export to a series of audio files distinguished by .1, .2 etc in their names.

12.3  Converting Audio and Data Files

In addition to loading and saving audio file formats, Sonic Visualiser can read audio signals from, and export to, comma-separated value (CSV) and similar textual data files. Use File → Convert Audio From Data File... to read audio data from a CSV file or similar, and File → Export Audio To Data File... to save audio data into a CSV file. When importing, you will be asked to confirm the file column layout, sample range, and sampling rate.

When converting audio from a data file, Sonic Visualiser creates an audio file on disc to hold the converted signal. This file will be saved in the converted folder within the recorded-audio location, and will remain there after Sonic Visualiser exits. Use File → Browse Recorded And Converted Audio to review such files.

12.4  Annotation Layer Import

Sonic Visualiser can import comma-separated (CSV) or tab-separated text data files as new annotation layers, whose type will depend on the format of data in the files and your preferences when importing the data. Sonic Visualiser can currently import data to time instants, time values, and colour 3D plot layers.

To import data from a text file, use the File → Import Annotation Layer and specify the proper file type in the import dialog.

You can also use this function to import data from Sonic Visualiser's own .svl layer file format, which is an XML format; any type of editable layer may be exported and imported to this format.

Sonic Visualiser can also import data from RDF documents using the Audio Features ontology. (An example of an application which produces these documents natively is the Sonic Annotator batch audio feature extraction program.)

Finally, you can also import Standard MIDI files as note layers. Only a single track can be imported at a time.

12.5  Annotation Layer Export

Sonic Visualiser can export layers as comma-separated or tab-separated text data, as Audio Features ontology RDF in Turtle syntax, as Standard MIDI files, or as its own .svl XML format.

To export a layer, ensure that the layer is current, and use File → Export Annotation Layer. The file type will be determined from the extension you use when naming the file: .csv for comma-separated files, .txt or .tsv for tab-separated files, .svl for Sonic Visualiser layer files, .ttl for RDF/Turtle files, and .mid for Standard MIDI files. If your filename has no extension, CSV will be assumed and a .csv extension will be added.

Which layer types you can export depends on the file format you are exporting to:

Note that Spectrum layers can't be exported.

To export the original audio waveform to a textual data file, use Export Audio To Data File instead.

When exporting a layer to a CSV or similar delimited text format, you will be offered a number of options controlling the details of the exported file (see image). You can choose the column separator character, whether to include a header row before the data, and the presence and format of the timestamp column.

The set of available options depends on the layer type: for example, sparse layers such as time-value layers must have a timestamp column, so that option is always set when exporting such layers.

If there is a selection currently active, then when exporting to CSV-like formats or MIDI you will be given the option to export only the time region within the selection. Note that in this case the export will consist of those events or columns that start within the selected area — events whose duration spans part of the selection will not be included unless they actually start inside it.

For the dense layers (Colour 3D Plot and Spectrogram), you will also have the option of whether to export only those frequency or value bins that fall within the vertical range of the view, or whether to export the full height of the layer regardless of the current vertical zoom setting.

12.6  Image File Export

You can use the File → Export Image File function to export the current pane as an image file in PNG format. This exports the full width of the pane, not just the currently visible area of it, and so it may create a very large file.

12.7  Opening Remote Locations

Sonic Visualiser can open files obtained by download from remote HTTP and FTP locations. Use File → Open Location to do this, entering a standard http:// or ftp:// URL into the location dialog. Full sessions, single audio files, layer files, and even m3u playlist files may be opened in this way.

If you open a session file from a remote location, Sonic Visualiser will use the same remote location to search for any audio or other dependent files that the session refers to and that can not be found at the literal locations recorded in the session file.

12.8  Session Templates

Once you have a session set up with a useful set of layers and panes, you can save it as a template and use it with other audio files in the future. To do this, use File → Export Session as Template and choose a name for the new template.

Templates you have exported will appear in the menu found at File → Apply Session Template. This menu also contains some standard templates which are bundled with Sonic Visualiser. Selecting a template from this menu will replace the current session with the template you have selected, using the current audio file as its main model. You can choose a template to be used every time you open a new audio file, in the Session Template tab of the Application Preferences.

Exported templates are simply stored as session files with a .svt prefix, in your local Sonic Visualiser templates directory. To rename or delete any of them, use File → Manage Exported Templates to open the templates directory in your system file manager.

14  The Unit Converter

The Unit Converter window, accessible through View → Show Unit Converter, is a helper utility for conversions between frequency and simple musical pitch measurements, and between beat duration and tempo. It has two tabs containing form fields for conversion: pitch (see left) and tempo (below).

The pitch converter has fields in which you can enter a fundamental frequency value, MIDI pitch, or note name; whenever you change the value in any field, all of the other fields are updated so that the displayed frequency and displayed pitch match up. (For example, if you enter 261Hz, the other fields will update to show middle C, with a small rounding error reflected as an offset in the cents field at the right.) All conversions simplistically assume 12-tone equal temperament, so that it makes no difference which key is in effect, and are carried out relative to the reference tuning frequency and MIDI octave numbering currently set in the application preferences.

The tempo converter has fields in which you can specify a beat period (the length of time between consecutive beats) in either milliseconds or audio samples, or a tempo value in either beats per second or beats per minute (bpm). There is also a sample rate field, which gives the number of samples per second used for the audio sample timing field. As with the pitch converter, when you change any value, the others are updated so that they all show the same effective tempo. (For example, if you enter 180bpm, the other fields will show 3 beats per second, 333⅓ms, and a third of whatever sample rate has been entered.)

14  Application Preferences

The Application Preferences window (available through the Preferences option of the File menu) contains a number of things which may be adjusted to change the display or calculations carried out by Sonic Visualiser.

15  Keyboard and Mouse Reference

This section describes some commonly used keys and mouse actions.

You can call up a complete reference for keyboard controls from the Help menu in Sonic Visualiser, or by pressing F2 within the program.

In addition to their normal mouse operation, you can double-click on many of the visual controls used in Sonic Visualiser (such as the rotary dials) to enter exact values for them directly in a text field. You can also click with the middle mouse button on these controls to reset them to their defaults.

15.1  Tool selection actions

See also: Tools

Press the keys 1 to 6 to change the current tool.
Press 1 for the navigate tool, 2 for the select tool, 3 for the edit tool, 4 for the draw tool, 5 for the erase tool and 6 for the measure tool.

15.2  Overlay display level actions

Press the keys 8, 9, and 0 to change the text overlay display level.

Press 8 to display all available text overlays, including centre frame and time ruler markings, vertical scale and colour scale information, and the names and stacking order of layers in the panes.

Press 9 to display basic textual information, omitting the layer names and colour scales but retaining the vertical scale where appropriate.

Press 0 to suppress all textual and timing information.

15.3  Scrolling actions

See also: Zoom and Scrolling

Press the Left and Right cursor keys to scroll the current pane by small increments. Hold Ctrl with the Left and Right cursor keys to scroll in larger, half-window increments.

If you have more than one pane, press the square bracket keys "[" and "]" to change which pane is current. Use curly brackets "{" and "}" to change which layer is current within the pane.

With the navigate tool selected, click and drag with the left or middle mouse button in any pane to move the centre frame.

When any other tool is selected, click and drag with the middle mouse button in any pane to move the centre frame.

Click and drag with any button in the navigation bar at the bottom of the window to move quickly around the audio file.

15.4  Zoom actions

See also: Zoom and Scrolling

Roll the mouse wheel (or use two-finger trackpad scrolling) upwards or press the Up cursor key to zoom in; roll the wheel down or press the Down cursor key to zoom out.

15.5  Playback actions

See also: Audio Playback and Recording

Press Space to start or stop playback.

Press Page Up or Page Down to rewind or fast-forward to the next time instant or point in the active layer, if there is a time instants or time values layer active, or to the next step on the time ruler.

Press Home or End to rewind or fast-forward to either end of the file.

Double-click on the small representation of the audio file at the bottom of the window to jump straight to a particular time in the file. With the navigate tool selected, double-click on any pane to jump to that time.

Press the keypad Enter key, or the semicolon key ";", to insert a time instant at the current playback position, for real-time annotation. If the current layer is not a time instant layer, a new time instant layer will be created and added to the current pane and the new instant will be inserted into that.
